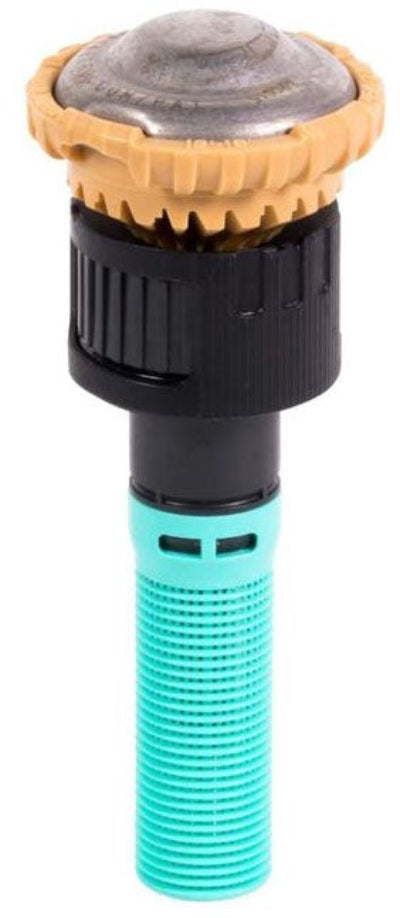

Rain Bird R VAN18, 13'To18',45-270 Degree, R-VAN Nozzle

• Sprinkler Rotary Nozzle
• Type Adjustable Arc, High Efficiency, Multi-Stream, Pop-Up
• Spray Dimensions 13 to 18 Foot (Radius), 8 to 24 Foot (Spacing), 4 Inch (Pop-Up Height)
• Spray Arc Angle 45 to 270 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 30 to 55 PSI
• Flow Rate 0.42 to 0.58 GPM at 90 Degree Arc, 0.85 to 1.09 GPM at 180 Degree Arc, 0.98 to 1.26 GPM at 210 Degree Arc, 1.26 to 1.62 GPM at 270 Degree Arc
• Precipitation Rate 0.6 to 0.65 Inch per Hour at 90/180/270 Degree Arc/0.63 to 0.64 Inch per Hour at 210 Degree Arc (Square Spacing), 0.69 to 0.75 Inch per Hour at 90/180/270 Degree Arc/0.73 to 0.44 Inch per Hour at 210 Degree Arc (Triangle Spacing)
• Inclusions/Features Low Precipitation Rate, Pull-Up to Flush, Color Coded and Laser Marked
• Application Turfgrass, Slope, Narrow Strip, Small Area, Landscape Bed, High Wind, High Pressure
• Applicable Standard ASAE S398.1, ASABE/ICC 802, LEED, USGBC
• Used On Sprinkler

Compatible with 1804,1806,1812 Rain Bird spray bodies, 1/2" risers and adapters.
13-18 ft adjustable pattern rotary nozzle

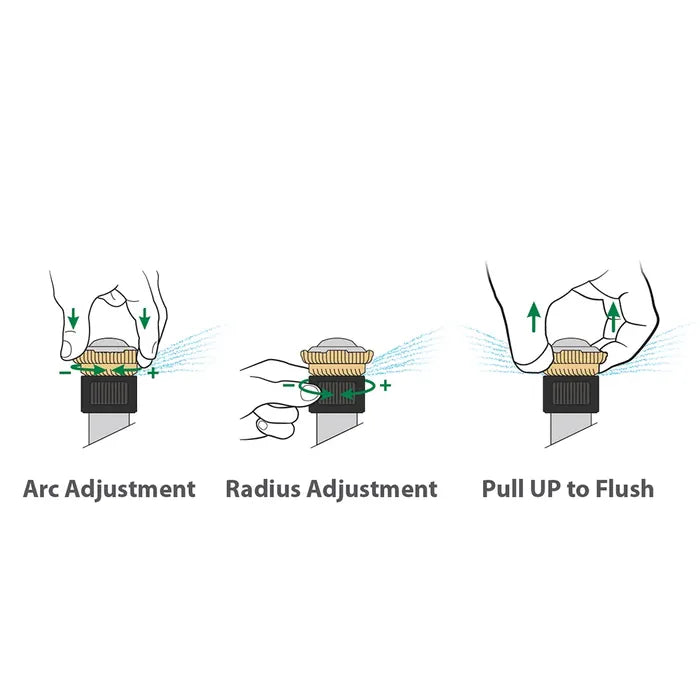

Quickly adjust arc and radius without tools
Pull up flush feature clears the nozzle of dirt and debris

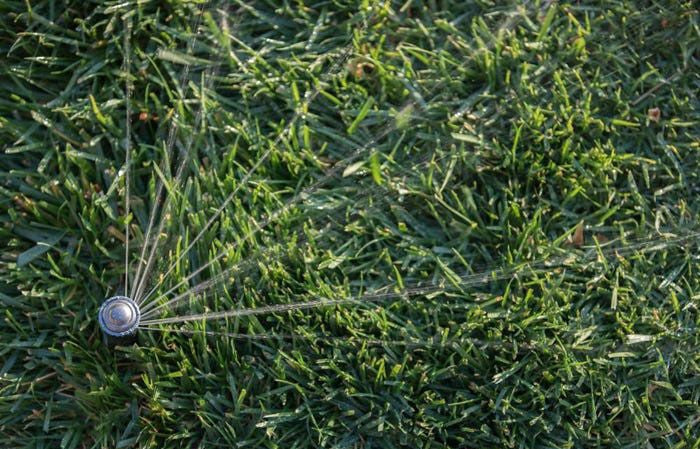

Multiple, rotating streams uniformly distribute water throughout the radius range
Low precipitation rate reduces run-off and erosion
Matched precipitation rates across radius, arc and pattern types
Maintains efficient performance at high operating pressures without misting or fogging

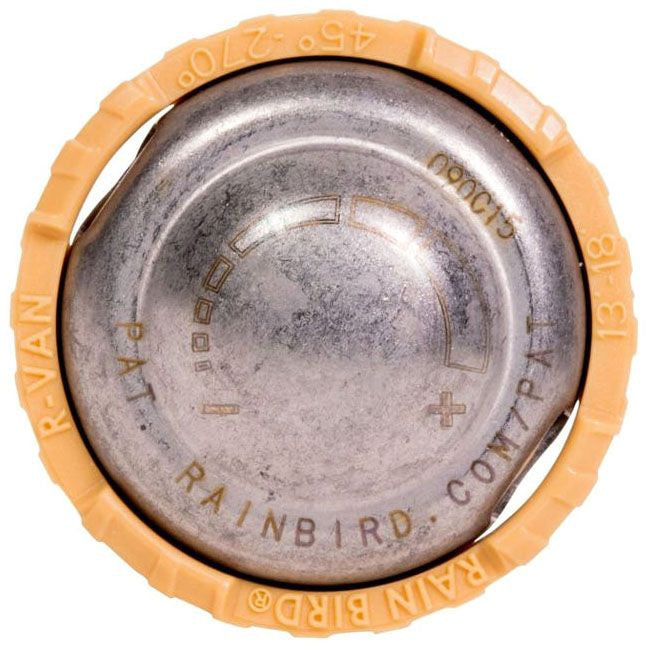

Color-coded and laser-marked for easy identification of R-VAN model
Not compatible with 1802 and 1803 Rain Bird spray bodies
