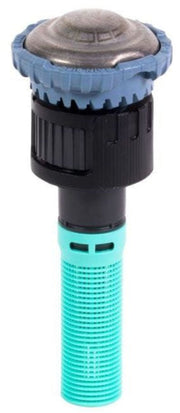

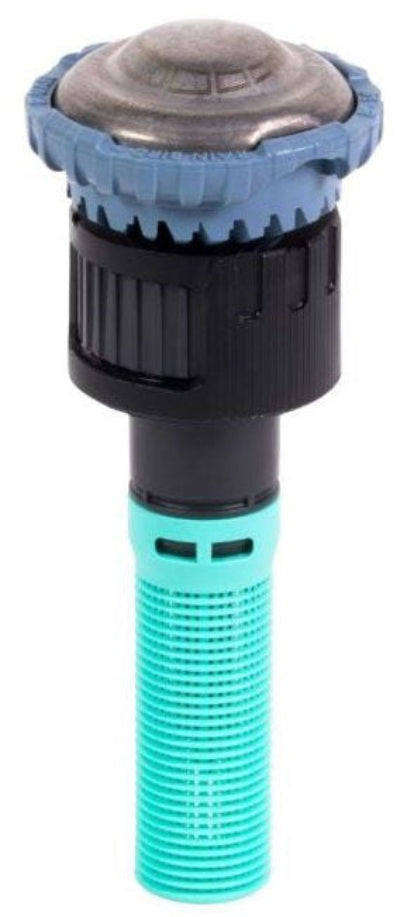

Rain Bird R VAN14 8'To14',45-270 Degree, R-VAN Nozzle
by Rain Bird
Original price
$4.32
-
Original price
$4.32
Original price
$4.32
$4.32
$4.32
-
$4.32
Current price
$4.32
• Sprinkler Rotary Nozzle
• Type Adjustable Arc, High Efficiency, Multi-Stream, Pop-Up
• Spray Dimensions 8 to 14 Foot (Radius), 8 to 24 Foot (Spacing), 4 Inch (Pop-Up Height)
• Spray Arc Angle 45 to 270 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 30 to 55 PSI
• Flow Rate 0.28 to 0.39 GPM at 90 Degree Arc, 0.56 to 0.78 GPM at 180 Degree Arc, 0.65 to 0.91 GPM at 210 Degree Arc, 0.84 to 1.17 GPM at 270 Degree Arc
• Precipitation Rate 0.64 to 0.67 Inch per Hour at 90/180/210/270 Degree Arc (Square Spacing), 0.76 to 0.77 Inch per Hour at 90/180/210/270 Degree Arc (Triangle Spacing)
• Inclusions/Features Low Precipitation Rate, Pull-Up to Flush, Color Coded and Laser Marked
• Application Turfgrass, Slope, Narrow Strip, Small Area, Landscape Bed, High Wind, High Pressure
• Applicable Standard ASAE S398.1, ASABE/ICC 802, LEED, USGBC
• Used On Sprinkler
• Type Adjustable Arc, High Efficiency, Multi-Stream, Pop-Up
• Spray Dimensions 8 to 14 Foot (Radius), 8 to 24 Foot (Spacing), 4 Inch (Pop-Up Height)
• Spray Arc Angle 45 to 270 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 30 to 55 PSI
• Flow Rate 0.28 to 0.39 GPM at 90 Degree Arc, 0.56 to 0.78 GPM at 180 Degree Arc, 0.65 to 0.91 GPM at 210 Degree Arc, 0.84 to 1.17 GPM at 270 Degree Arc
• Precipitation Rate 0.64 to 0.67 Inch per Hour at 90/180/210/270 Degree Arc (Square Spacing), 0.76 to 0.77 Inch per Hour at 90/180/210/270 Degree Arc (Triangle Spacing)
• Inclusions/Features Low Precipitation Rate, Pull-Up to Flush, Color Coded and Laser Marked
• Application Turfgrass, Slope, Narrow Strip, Small Area, Landscape Bed, High Wind, High Pressure
• Applicable Standard ASAE S398.1, ASABE/ICC 802, LEED, USGBC
• Used On Sprinkler
Additional Product Information
A84659A
