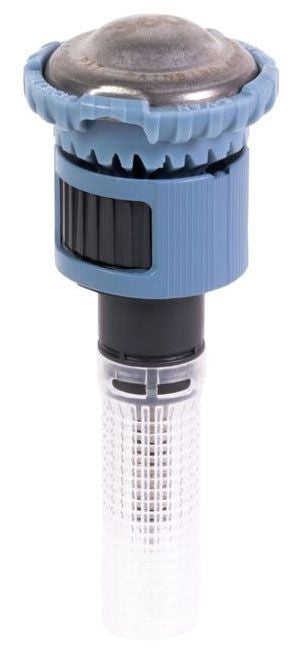

Rain Bird R VAN14 360, 8' To 14' , 360 Degree,R-VAN Nozzle

• Sprinkler Rotary Nozzle
• Type Full Circle, High Efficiency, Multi-Stream, Pop-Up
• Spray Dimensions 8 to 14 Foot (Radius), 8 to 24 Foot (Spacing), 4 Inch (Pop-Up Height)
• Spray Arc Angle 360 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 30 to 55 PSI
• Flow Rate 1.1 to 1.45 GPM
• Precipitation Rate 0.62 to 0.63 Inch per Hour (Square Spacing), 0.72 Inch per Hour (Triangle Spacing)
• Inclusions/Features Low Precipitation Rate, Pull-Up to Flush, Color Coded and Laser Marked
• Application Turfgrass, Slope, Narrow Strip, Small Area, Landscape Bed, High Wind, High Pressure
• Applicable Standard ASAE S398.1, ASABE/ICC 802, LEED, USGBC
• Used On Sprinkler

Compatible with 1804,1806,1812 Rain Bird spray bodies, 1/2" risers and adapters.

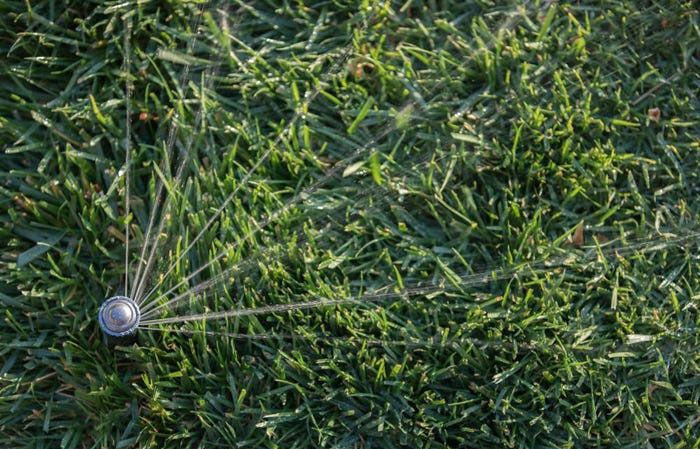

8-14 ft full circle pattern rotary nozzle

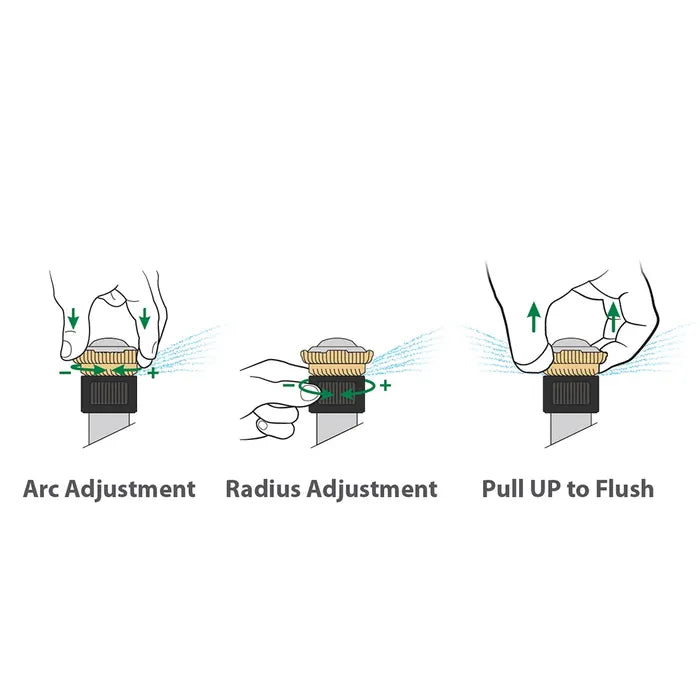

Quickly adjust radius without tools
Pull up flush feature clears the nozzle of dirt and debris

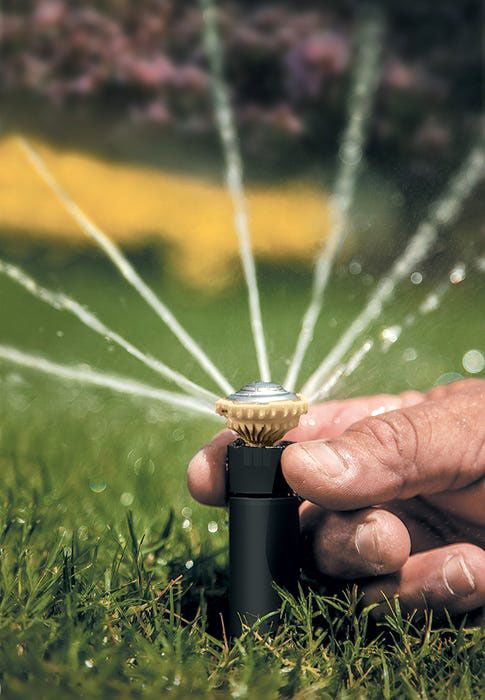

Multiple, rotating streams uniformly distribute water throughout the radius range
Low precipitation rate reduces run-off and erosion
Matched precipitation rates across radius, arc and pattern types
Maintains efficient performance at high operating pressures without misting or fogging

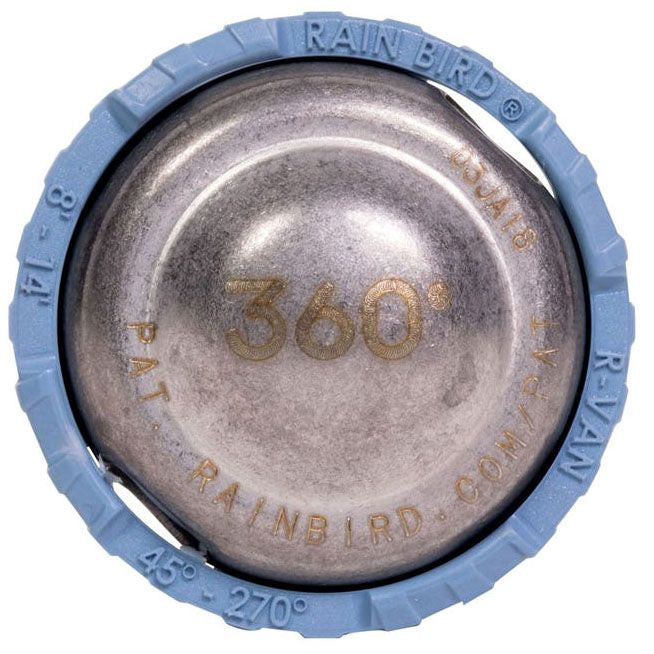

Color-coded and laser-marked for easy identification of R-VAN model
Compatible with all models of Rain Bird spray bodies, risers and adapters
Not compatible with 1802 and 1803 Rain Bird spray bodies*
