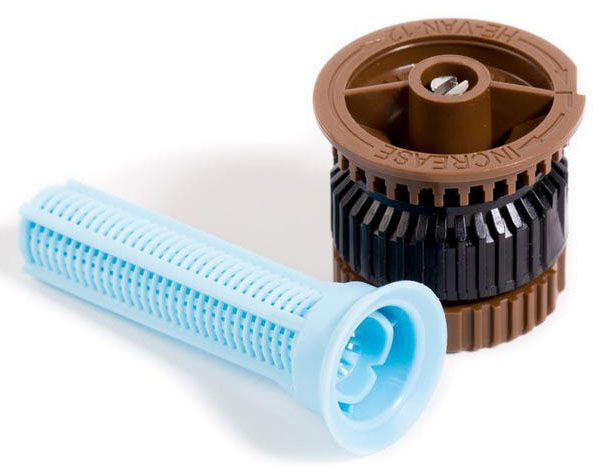

Rain Bird HE VAN 12 9 to 12 Feet HE ARC VAN Nozzle
by Rain Bird
Save 10%
Original price
$1.60
Original price
$1.60
-
Original price
$1.60
Original price
$1.60
Current price
$1.44
$1.44
-
$1.44
Current price
$1.44
• Sprinkler Spray Nozzle
• Type Fixed Spray, Variable Arc, High Efficiency
• Spray Dimensions 9 to 12 Foot (Radius), 6 to 15 Foot (Spacing)
• Spray Arc Angle 0 to 360 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 15 to 30 PSI
• Flow Rate 0.42 to 0.59 GPM at 90 Degree Arc, 0.84 to 1.18 GPM at 180 Degree Arc, 1.25 to 1.77 GPM at 270 Degree Arc, 1.67 to 2.37 GPM at 360 Degree Arc
• Precipitation Rate 1.58 to 1.99 Inch per Hour at 90/180/270/330 Degree Arc (Square Spacing), 1.83 to 2.3 Inch per Hour at 90/180/270/330 Degree Arc (Triangle Spacing)
• Inclusions/Features Standard Precipitation Rate, Unique Stream Pattern, Filter Screen, Stainless Steel Adjustment Screw
• Application Turfgrass, Landscape Bed, High Wind, High Pressure, Small Area
• Applicable Standard ASABE/ICC 802, LEED, USGBC
• Trajectory Angle 23 Degree
• Used On Sprinkler
• Type Fixed Spray, Variable Arc, High Efficiency
• Spray Dimensions 9 to 12 Foot (Radius), 6 to 15 Foot (Spacing)
• Spray Arc Angle 0 to 360 Degree
• Head Material UV Resistant Plastic
• Warranty 3 Year
• Pressure Rating 15 to 30 PSI
• Flow Rate 0.42 to 0.59 GPM at 90 Degree Arc, 0.84 to 1.18 GPM at 180 Degree Arc, 1.25 to 1.77 GPM at 270 Degree Arc, 1.67 to 2.37 GPM at 360 Degree Arc
• Precipitation Rate 1.58 to 1.99 Inch per Hour at 90/180/270/330 Degree Arc (Square Spacing), 1.83 to 2.3 Inch per Hour at 90/180/270/330 Degree Arc (Triangle Spacing)
• Inclusions/Features Standard Precipitation Rate, Unique Stream Pattern, Filter Screen, Stainless Steel Adjustment Screw
• Application Turfgrass, Landscape Bed, High Wind, High Pressure, Small Area
• Applicable Standard ASABE/ICC 802, LEED, USGBC
• Trajectory Angle 23 Degree
• Used On Sprinkler
Additional Product Information
HE1201
