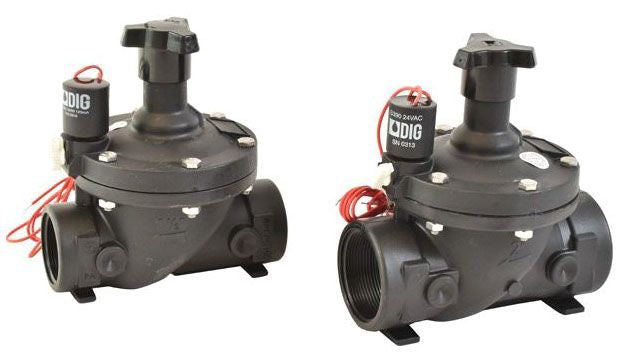

DIG 1 1/2 24 VAC inline globe valve with flow control
by DIG
Sold out
Original price
$139.74
Original price
$139.74
-
Original price
$139.74
Original price
$139.74
Current price
$125.77
$125.77
-
$125.77
Current price
$125.77
• In-Line Valve
• Type Globe, Heavy Duty, Manual/Automatic Control
• Nominal Size 1-1/2 Inch x 1-1/2 Inch
• End Connection Female Threaded x Female Threaded
• Bonnet Material Glass Reinforced Nylon
• Body Material Glass Reinforced Nylon
• Seat Material Nitrile Rubber
• Pressure Rating 10 to 150 PSI
• Inclusions/Features 24 Volt AC 50/60 Hertz Glass Reinforced Nylon Solenoid and Flow Control, Stainless Steel Spring/Pin/Bolt, Nylon Fabric Reinforced Polyisoprene Encapsulated Diaphragm Seat Assembly, Silicon O-Ring
• Application Commercial, Irrigation
• Power Consumption 1.7/2.2 Watt
• Current Rating 0.25 Amp, 0.125 Amp (Holding)
• Overall Dimension 6.12 Inch Length x 5.75 Inch Width x 7.12 Inch Height
• Solenoid Thread Size 3/4 Inch-20 UNES-2A
• Flow Rating 20 to 132 GPM
• Type Globe, Heavy Duty, Manual/Automatic Control
• Nominal Size 1-1/2 Inch x 1-1/2 Inch
• End Connection Female Threaded x Female Threaded
• Bonnet Material Glass Reinforced Nylon
• Body Material Glass Reinforced Nylon
• Seat Material Nitrile Rubber
• Pressure Rating 10 to 150 PSI
• Inclusions/Features 24 Volt AC 50/60 Hertz Glass Reinforced Nylon Solenoid and Flow Control, Stainless Steel Spring/Pin/Bolt, Nylon Fabric Reinforced Polyisoprene Encapsulated Diaphragm Seat Assembly, Silicon O-Ring
• Application Commercial, Irrigation
• Power Consumption 1.7/2.2 Watt
• Current Rating 0.25 Amp, 0.125 Amp (Holding)
• Overall Dimension 6.12 Inch Length x 5.75 Inch Width x 7.12 Inch Height
• Solenoid Thread Size 3/4 Inch-20 UNES-2A
• Flow Rating 20 to 132 GPM
Additional Product Information
33-016
